 APE-X Pro

A Qausi-Direct Drive (QDD) actuator inspired by the MIT Cheetah. Used in many robotics, a QDD actuator allows for precise control and other features:


  • Smaller form factor due to integration of Planetary gear drive along with the motor in one unit.

​

  • Elastically dampened backdrivability allows for better simulation of biomimetics.

​

  • Peak Torque  - 12 Nm indicates better weight to torque ratio.

​​

  • Motor control driven using MJBots  Moteus r4-8 board which allows for daisy chaining using CAN bus.

​

​

​

​

​

CPT-0000-0000-MK2-FRONT_edited_edited_ed

General Arrangement


Planetary Gear Box

The Ape-X pro actuator uses a 1:6 ratio gear box which allows for a jump in torque from 2Nm to 12Nm. A reduction on speed by x6 will reduce the speed of the actuator, however this is offset through the use of a higher voltage supply to supplement the RPM loss.

Section View

CPT-0000-0000-MK2-SECTION3_edited_edited

Machined Parts

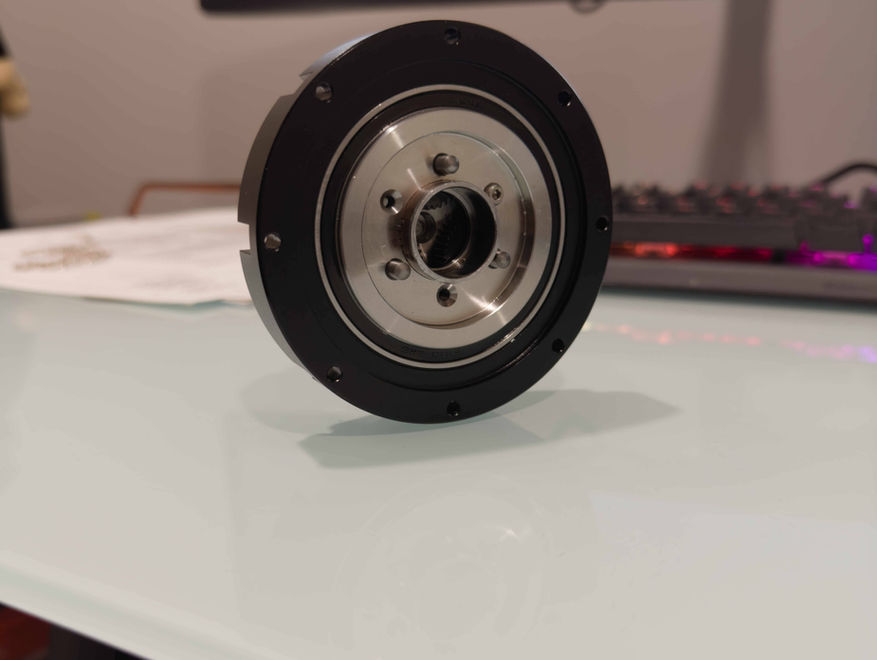

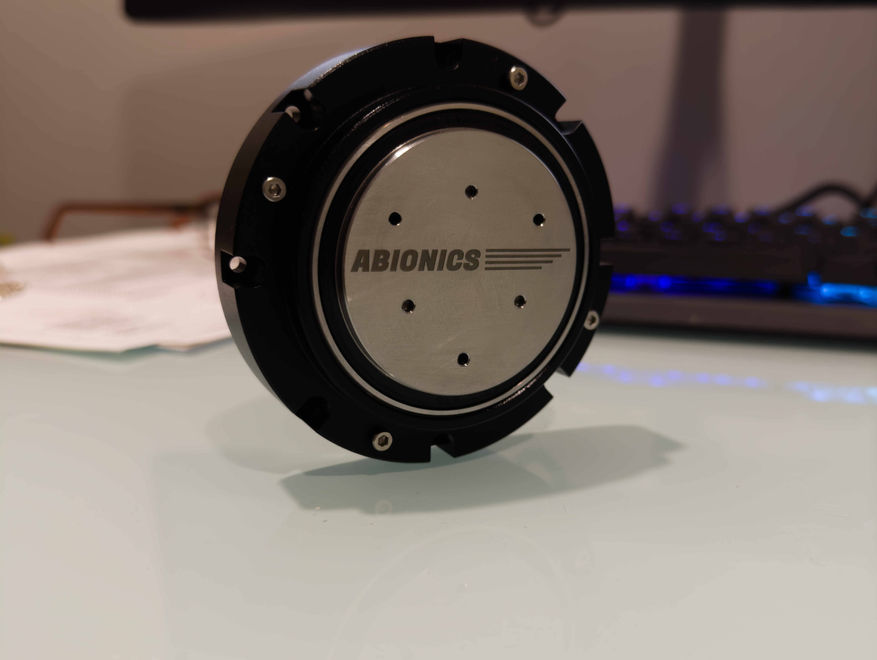

Below are the drawings for the current machined parts. Not all drawings are completed yet however over 60% of the parts have been produced using PCBWay CNC Machining. The photos for parts as is can be seen in the second image set below:

output-onlinepngtools (7).png
